Thalatta

Thalatta is an algorithmic graph description language. It is a specialized tool combining graph description task with a programming language by having a syntax for procedural generation.

Language overview

The following is an example of Thalatta language program:

and = 0;
xor = 1;
bits = 2;
a = [bits]node(xor, 0);
b = [bits]node(xor, 1);
c = node(and) <- node(xor, 2);
out = [bits+1]node(xor);
p = [bits]node(xor) <- a <- b;
g = [bits]node(and) <- a <- b;
out[0:bits] <- ([bits]node(and) <- p);
foreach (out) {
	@ <- (node(and) <- p[0:@0] <- c);
	for (i = 0; i < @0; ++i)
		@ <- (node(and) <- p[i+1:@0] <- g[i]);
}

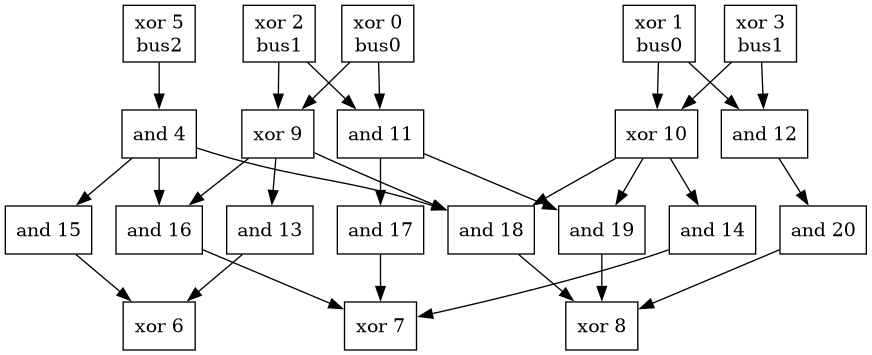

If to consider nodes storing 0 as logic and gates and 1 as logic xor gates consequently with directed edges connecting them, this creates a valid 2-bit carry-lookahead adder. It can be expressed as the following graph:

Reference for the latest Thalatta version is distributed together with the reference implementation source.

Thalatta Compiler

This page offers a reference implementation of a Thalatta compiler.

As of dependencies it requires

• C89 compiler with the following extensions
  • Anonymous structures
  • Passing structures by value
• ANSI-compliant C library
• POSIX make (optional)

Available versions for downloading are

• v0.1.0

  Well, the first version to be published...

• v0.2.0

  - Some minor fixes
  - Better allocation
  - Code example
  - Closures

Complete changelog is available through a git repository at anongit at git dot nakidai dot ru colon thac.
